商品の詳細:
|
| カッター: | BBT 粘土レンガ製造ライン用高性能粘土レンガ切断システム | 切断サイズ: | カスタムメイド |
|---|---|---|---|
| 適切なレンガの種類: | 固体レンガ、中空ブロック、壁パネル、セラミック | 自動化の程度: | 全自動 |
| B. コアテクノロジー: | ワイヤー対ブレード | レンガライン: | E. 粘土レンガ製造ラインの切断システム |
| ハイライト: | clay brick cutting machine,high performance brick cutter,brick making production line equipment |
||

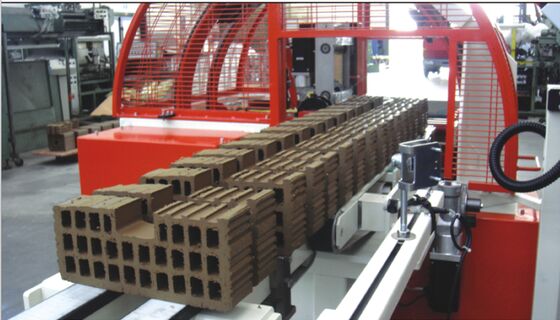

BBT High Performance Clay Brick Cutting Systems for Clay Brick Making Production Line
BBT Brick Making Cutting System – Key Component for Clay Brick Production
The cutting systems from BBT are one of the critical parts in the production line of the clay brick making.
They are designed to cut the continuous columns first and then cut the columns into green bricks, the green bricks are ready for drying and firing. Most of the cuttting systems are custom building and BBT can do the design, manufacturing and supplying at the same time.
A. The Extrusion & Cutting Workflow
1. Extrusion: The continuous column is extruded from an extruder by a mould.
2. Cutting: Columns will be cutting into different models of green bricks.
B. Core Technology: Wire vs. Blade
Wire Cutting: high-tensile steel wires for efficient cutting and desilting.
C. Types of cutting systems
By Cutting Mechanism:
Vertical Cutter: Cuts designed in vertical to save space, using in high-capacity of brick factories.
Downward Press Cutter: Cuts by pressing down from top to bottom of the columns with high precision and adaptability.
Synchronous Cutter: Featured with a moving frame that matches the extruder's speed for distortion-free cuts.

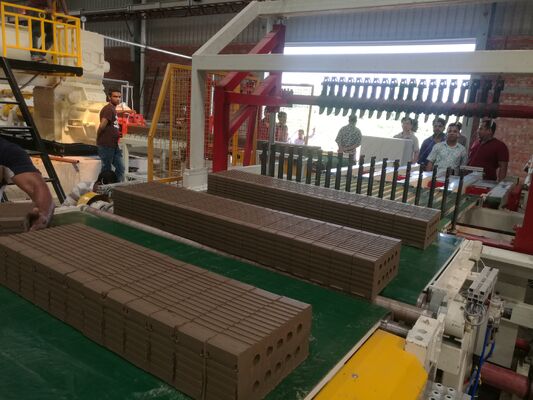

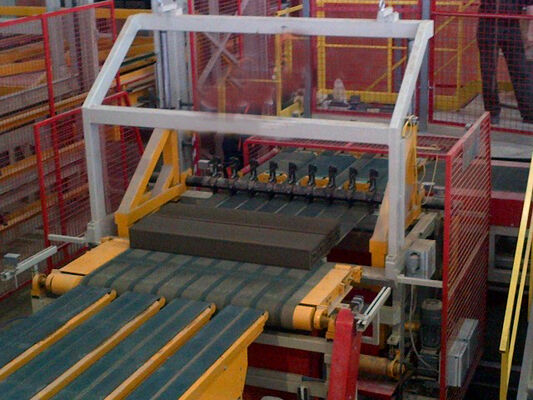

Multi-Wire Cutter: multiple wires for high-capacity cutting.
Automatic level
Fully Automatic, High-speed, high-capacity cutting systems
Cutting systems
Chamfering device: a chamfering knife is installed to bevel edges in the same operation.
Logo printing device: a logo printing device is installed for printing the logo on the side of the bricks.
D. How to Choose a Cutting System
Production capacity: brick capacity from 5,000 bricks to 20,000 bricks/hour;
Automation degree: Fully automatic or half automatic;
How many types of bricks will be cutting: clay solid bricks, clay hollow blocks, facing bricks and pavers;
Precision Requirements: Precision is critical for modern construction standards.
Total investment in the cutting systems:

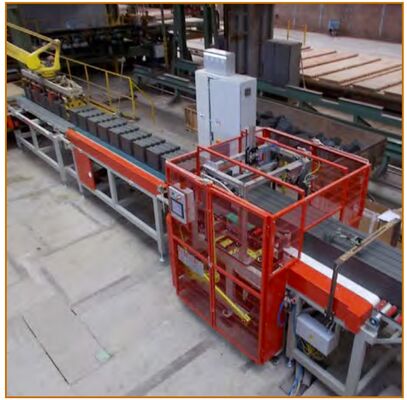

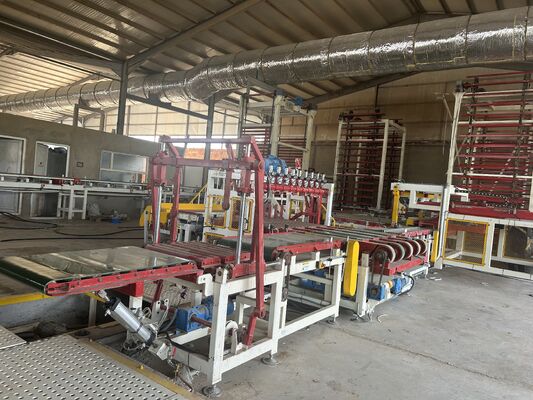

E. Cutting systems in the production line for clay brick making
BBT Clay Brick Cutting System of Technical datas:
| Item | Details |
|---|---|
| Product Name | BBT Clay Brick Cutting System |
| Automation | Fully Automatic |
| Cutting Size | Customizable |
| Suitable Bricks | Solid Brick, Hollow Block, Wall Panel, Ceramics |
| Core Technology | Wire Cutting / Blade Cutting |
| Cutting Types | Vertical, Downward Press, Synchronous, Multi-Wire |
| Capacity | 5,000–20,000 bricks/hour |
| Custom Service | Design, manufacturing & supply |
| MOQ | 1 set |
| Delivery Time | 15 days |
BBT is a professional provider of full automatic clay brick making production lines and related equipment.
Our main products include:
TCNL series full steel chain box feeder
TWGD series double shaft mixer
GS series roller crusher
TRA series double tooth roller crusher
TWJH series front grid extruding mixer
TWPM series wet pan mill
QTQG series cutter
EV series vacuum extruder
Robot setting machine
Spare parts for brick making machinery
We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
